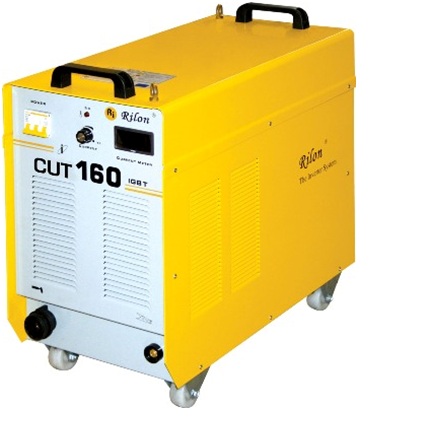

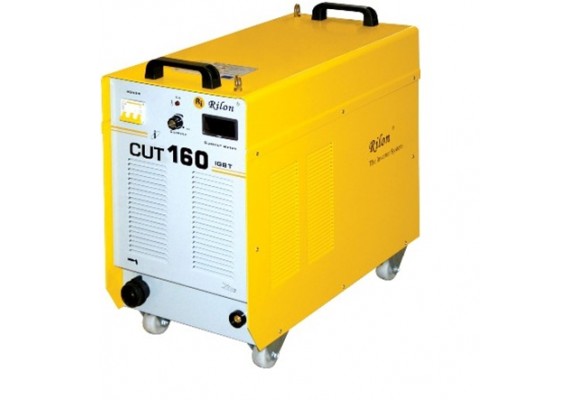

PLASMA CUTTER RILON CUT 160
Κωδικός: CUT160
|
PARAMETERS
|
SPECIFICATION
|
|
Input Voltage
|
AC380V+-15% 1P
|
|
Input Frequency
|
50/60
|
|
Related Input Current
|
44A
|
|
Input Power
|
29KVA
|
|
Open Circut Voltage
|
320V
|
|
Current Range
|
20-160A
|
|
Related Output Voltage
|
144V
|
|
Duty Cycle
|
60%
|
|
Efficiency
|
85%
|
|
Power Factor
|
0.93
|
|
Cutting thickness
|
<= 50mm
|
|
Arc initiating
|
Untouch
|
|
Air pressure (MPa)
|
0.4-0.6MPa
|
|
Protection Class
|
IP21
|
|
Weight
|
60KG
|
|
Dimensions
|
670X320X640 mm
|
