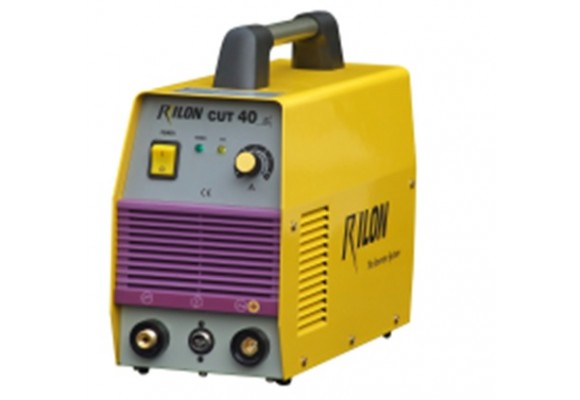

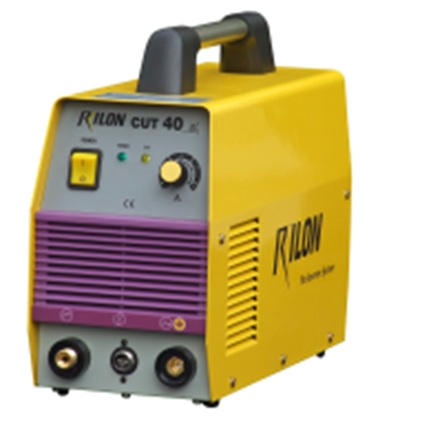

PLASMA CUTTER RILON CUT 40
Κωδικός: CUT40
|
PARAMETERS
|
SPECIFICATION
|
|
Input Voltage
|
AC220V+-15% 1P
|
|
Input Frequency
|
50/60
|
|
Related Input Current
|
30A
|
|
Input Power
|
6.6KVA
|
|
Open Circut Voltage
|
230V
|
|
Current Range
|
15-40A
|
|
Related Output Voltage
|
96V
|
|
Duty Cycle
|
60%
|
|
Efficiency
|
80%
|
|
Power Factor
|
0.73
|
|
Cutting thickness
|
<= 5mm
|
|
Arc initiating
|
Touch
|
|
Air pressure (MPa)
|
0.4-0.5MPa
|
|
Protection Class
|
IP21
|
|
Weight
|
9KG
|
|
Dimensions
|
395X153X301 mm
|
