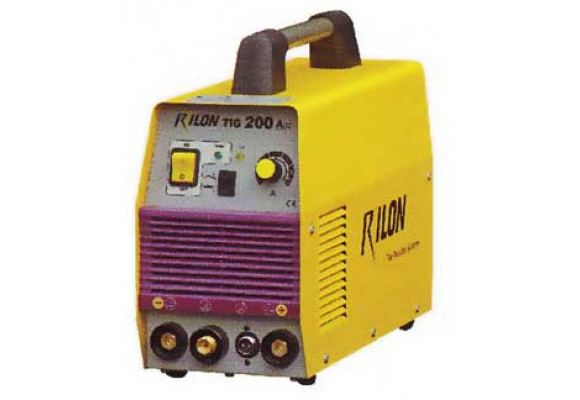

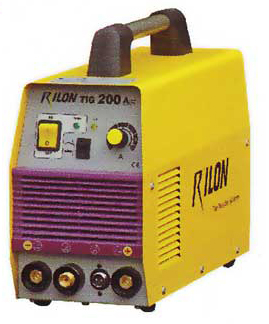

TIG WELDING RILON 200
Κωδικός: TIG200AC
|
PARAMETERS
|
SPECIFICATION
|
|
Rated Input Voltage(V)
|
AC220V±15% 1P
|
|
Arc-Initiating(TIG)
|
H-F
|
|
Rated Input Current(A)
|
TIG:28.2 MMA:32.6
|
|
Efficiency(%)
|
80
|
|
Input Frequency (HZ)
|
50/60
|
|
Power Factor
|
0.73
|
|
Rated Input Power(KVA)
|
TIG:6.2
|
|
MMA:7.1 Protection Grade
|
IP21
|
|
Open Circuit Voltage(V)
|
56
|
|
Weight(kg)
|
9
|
|
Current Range(A)
|
10-200
|
|
Dimension(mm)
|
395*153*301
|
|
Duty cycle at maximum current
|
60%@25
|
